DIN553 Stainless Steel Cone-Point Slotted Drive Set Screws Slotted Cone-Point Headless Screws

Product Categories
Suzhou Runtai Precision Hardware Co,.Ltd.
Contact Now

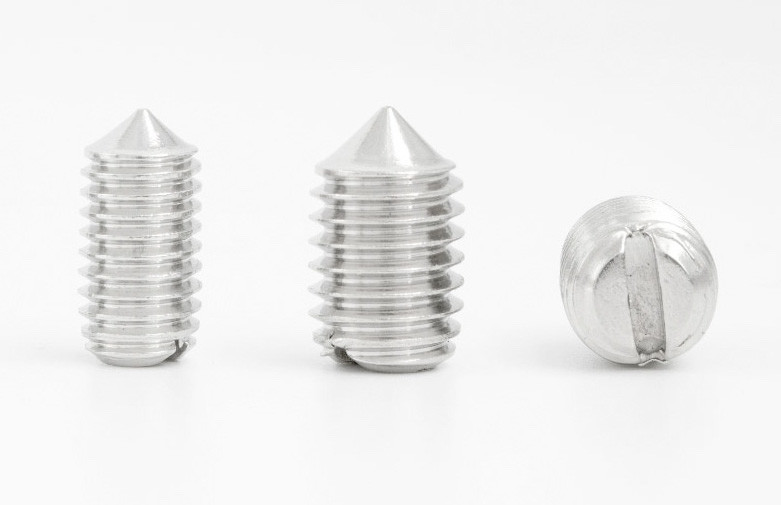

DIN553 Stainless Steel Cone-Point Slotted Drive Set Screws Slotted Cone-Point Headless Screws

  • 1
  • 2
  • 3

Brand Name : Runtai

Model Number : Set Screws

Certification : ISO9001/TS16949

Place of Origin : Jiangsu, China (Mainland)

MOQ : 50000

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram, D/A

Supply Ability : 5 Ton/ days

Delivery Time : 15-20 working days

Packaging Details : PP bag+Carton box+ Wooden Pallet

Size : M1-M30 for choose

Material : Steel, Stainless Steel, Brass, Aluminum Alloy

Grade : 4.8 8.8 10.9 12.9 for choose

Surface treatment : zinc plated, nickel plated, black phosphates for choose

Standard : DIN ISO JIS ANSI

Products Name : DIN553 Stainless Steel Cone-Point Slotted Drive Set Screws

Contact Now

DIN553 Stainless Steel Cone-Point Slotted Drive Set Screws Slotted Cone-Point Headless Screws

Products Description

18-8 stainless steel set screws are chemical resistant and may be mildly magnetic. A pointed tip wedges into the contact surface for a secure hold on soft materials such as brass. Length listed is the overall length.

Products Specification

Material 18-8 Stainless Steel
Thread Size M10
Thread Pitch 1.5 mm
Length 25 mm
Cone Point Angle 90°
Drive Size 5 mm
Hardness Rockwell B80
Specifications Met DIN 553, ISO 7434
Thread Type Metric
Thread Spacing Coarse
Thread Fit Class 6g
Thread Direction Right Hand
Drive Style Hex
Tip Type Cone
Head Type Headless
System of Measurement Metric
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

More Products Pictures

DIN553 Stainless Steel Cone-Point Slotted Drive Set Screws Slotted Cone-Point Headless ScrewsDIN553 Stainless Steel Cone-Point Slotted Drive Set Screws Slotted Cone-Point Headless Screws
